KAMERA DS-2CE76U1T-ITMF(2.8mm)

• 8MP
• TVI/AHD/CVI/CVBS output
• 8.29MP high performance CMOS
• EXIR 2.0
• IP67 protection, OSD menu, AGC, BLC, DNR, Smart IR
• DWDR
• 3-axis mounting
• Lens: 2.8mm (102.2°)
• Signal: PAL / NTSC
• Effective Pixels: 3840 (v) × 2160 (h)
• Video Frame Rate: 8 [email protected], 5 MP@20fps
• Sync: Internal
• IR Range: Up to 30m
• Day/Night: IR filter with automatic change
• Angle Adjustment: Pan: 0°-360°, Tilt: 0°-75°, Rotation: 0°-360°
• Minimum Illumination: 0.01ux @ F1.2
• HD Video Output: Analog HD, CVBS
• Signal-to-Noise Ratio: 62dB
• Power Supply: 12VDC
• Operating Temperature: -40°C to 60°C
• Power Consumption: 5.3W max.
• Dimensions: 90mm × 79mm
• Weight: 310g
• Additional Option: DS-1280ZJ-XS CAMERA MOUNT

Product Name: KAMERA DS-2CE76U1T-ITMF(2.8mm)

• Keywords: kamera, videonadzor, tvi, dome, 2.8mm, 8mp, ip67, 3osi
• Subcategory 1: ANALOG EQUIPMENT
• Subcategory 2: CAMERAS 8 MP

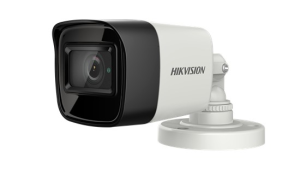

KAMERA DS-2CE16U1T-ITF(3.6mm)

The KAMERA DS-2CE16U1T-ITF(3.6mm) is a high-performance camera with various features to enhance your surveillance needs. With an 8MP resolution and TVI/AHD/CVI/CVBS output, this camera delivers exceptional image quality.

Key Features:

• 8MP resolution for clear and detailed images
• TVI/AHD/CVI/CVBS output for versatile compatibility
• 8.29MP high-performance CMOS sensor
• EXIR 2.0 technology for improved night vision up to 30m
• IP67 protection for outdoor use
• OSD menu for easy customization
• AGC, BLC, DNR, Smart IR for enhanced image quality
• DWDR for balanced exposure in challenging lighting conditions
• 3-axis mount for flexible installation

Specifications:

• Lens: 3.6mm (79° angle of view)
• Signal: PAL / NTSC
• Effective Pixels: 3840 (v) × 2160 (h)
• Video Frame Rate: [email protected], 5MP@20fps
• Synchronization: Internal
• IR Range: Up to 30m
• Day/Night: IR filter with automatic switching
• Angle Adjustment: Pan: 0°-360°, Tilt: 0°-180°, Rotation: 0°-360°
• Minimum Illumination: 0.01ux @ F1.2
• HD Video Output: Analog HD, CVBS
• Signal-to-Noise Ratio: 62dB
• Power Supply: 12VDC
• Operating Temperature: -40°C ~ 60°C
• Power Consumption: 5.3W max
• Dimensions: 58mm × 61mm × 159.8mm
• Weight: 360g

The KAMERA DS-2CE16U1T-ITF(3.6mm) is a bullet-style camera suitable for analog surveillance systems. It is an ideal choice for various applications, including home security, business monitoring, and more. Enhance your video surveillance setup with this high-quality 8MP camera.

*Mounting bracket DS-1280ZJ-XS is available as an optional accessory.

Product Description: KAMERA DS-2CD2386G2-I(4mm)

The KAMERA DS-2CD2386G2-I(4mm) is a high-quality dome IP camera designed for professional surveillance purposes. It comes with a range of advanced features and cutting-edge technology that ensures optimal performance and reliable security monitoring.

Main Features:

• Acusense: Utilizes advanced deep learning algorithms for accurate detection and filtering of potential threats.
• 8MP, 3-Axis Mounting: Offers high-resolution video capture and flexible installation options.
• 3840×2160@20fps: Delivers clear and detailed footage at 20 frames per second.
• PoE, IP67: Supports Power over Ethernet for easy installation and is weatherproof with IP67 rating.
• 3D-DNR, WDR, BLC: Enhances image quality by reducing noise, improving dynamic range, and optimizing exposure.
• Micro SD Slot: Allows for local storage of video recordings.
• Intelligent Detection: Includes features like intruder detection, line crossing, area of interest, and more, powered by deep learning algorithms.
• Person and Vehicle Differentiation: Can distinguish between people and vehicles for more accurate detection.
• Darkfighter: Provides excellent low-light performance for clear surveillance even in challenging lighting conditions.

Specifications:

• Sensor: 1/2.7" Progressive Scan CMOS
• Lens: 4mm (87.1°)
• IR Range: Up to 30m
• Effective Pixels: 3840 × 2160
• Compression: H.265+, H.265, H.264+, H.264
• Minimum Illumination: 0.014Lux @(F1.2,AGC ON)
• Day/Night: IR cut filter with auto switch
• Electronic Shutter: 1/3s to 1/100,100s
• Supported Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour
• Angle Adjustment: Pan: 0°-360°, tilt: 0°-75°, rotation: 0°-360°
• Communication: 1 RJ45 10M/100M Ethernet
• Operating Temperature: -30°C to 60°C
• Power Supply: 12VDC
• Power Consumption: 6.8W
• Dimensions: 138.3 × 126.3 mm
• Weight: 740g
• Optional Accessory: DS-1280ZJ-DM21

Storage:

• Supported: NAS, microSD slot

Tag Keywords:

• dome
• IP
• acusense
• 4mm
• 8MP
• PoE
• IP67
• darkfighter
• 3-axis
• H.265+
• microSD
• kamera
• videonadzor

Product Category:

• Main Category: MREŽNA OPREMA
• Subcategory: KAMERE ACUSENSE 6MP, 8MP
