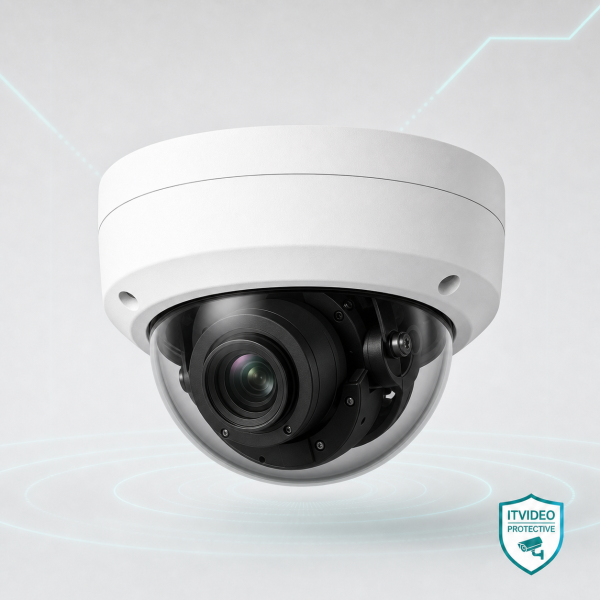

The Dome IP Camera Hikvision DS-2CD1721FWD-IZ is a high-quality surveillance camera that offers advanced features and reliable performance. With a resolution of 2MP, it delivers clear and detailed images for effective monitoring.
Featuring FULL HD real-time video, this camera ensures that you don't miss any important details. It supports PoE (Power over Ethernet) for easy installation and hassle-free setup.
Designed to withstand harsh environments, this camera is IP67 and IK10 rated, making it resistant to dust, water, and vandalism. It is equipped with a motorized lens, allowing you to adjust the zoom and focus remotely for optimal viewing.
Compatible with ONVIF, CGI, PSIA, and ISAPI standards, this camera offers seamless integration with other security systems. It also includes advanced features like 3D-DNR, D-WDR, and BLC for enhanced image quality.
The camera is equipped with a 1/2.8" progressive scan CMOS sensor and a 2.8-12mm lens, providing a wide viewing angle and allowing you to capture more details. With a range of up to 30m, the built-in IR illuminators ensure clear and sharp images even in low-light conditions.
The effective pixel resolution of 1920x1080 ensures that you get high-quality footage, while the H.264/MJPEG dual stream video compression technology reduces bandwidth usage and storage requirements.
With a minimum illumination of 0.01Lux @F1.2 AGC ON (0 Lux with IR), the camera delivers clear images even in complete darkness. The IR cut filter with auto switch ensures accurate color reproduction during the day and switches to black and white mode at night.
Featuring motion detection, tamper detection, and weatherproof design, this camera provides reliable security surveillance. It supports various protocols including TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, and Bonjour.
The camera offers flexible pan and tilt capabilities with a range of 0° to 360° for pan and 0° to 75° for tilt. It also supports 3-axis mounting for easy installation and positioning.
With a 1 RJ45 10M/100M Ethernet port, the camera enables seamless communication and connectivity. It also supports a micro SD card of up to 128GB for local storage.
Operating in a wide temperature range of -30°C to 60°C, this camera is suitable for both indoor and outdoor use. It can be powered by 12VDC or PoE (802.3af) for flexible installation options.
The camera consumes low power, with a maximum power consumption of 7W with IR. It has compact dimensions of ?141 mm × 99.9 mm and weighs 800g, making it easy to install and transport.
Additional accessories such as the DS-1280ZJ-DM21 and DS-1275ZJ camera mounts are available for convenient installation. The camera is compatible with Android, Windows, and iPhone mobile applications for remote monitoring.
The package includes user-friendly software such as iVMS, NVR Server, and StreamServer for effortless management and control. The camera is compatible with both Windows and MAC OS X operating systems.
• 2MP • FULL HD real-time video • PoE • IP67, IK10 • Motorizirani objektiv • Kompatibilna s ONVIF, CGI, PSIA, ISAPI standardima 3D-DNR, D-WDR, BLC Senzor: 1/2.8“ progresiveScan CMOS Leća: 2.8-12mm Domet IR-a: do 30m Efektivni pikseli: 1920x1080 H.264/MJPEG dual stream video kompresija Minimalno osvjetljenje: 0.01Lux @F1.2 AGC ON, 0 Lux sa IR-om Dan/noć: IR cut filter sa auto prekidačem Elektronski okidač: 1/3s do 1/100,100s Podržava: motion detekciju, tamper detekciju, otporna na nepovoljne vremenske uvjete Podržani protokoli TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, NTP,UPnP,SMTP,IGMP,802.1X,QoS,IPv6, Bonjour Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360° Komunikacija: 1 RJ45 10M/100M Ethernet 3-axis (montaža u 3 osi) Micro SD kartica do 128GB Radna temperatura: -30°C ~ 60°C Napajanje: 12VDC, PoE(802.3af) Potrošnja struje: 5W (7W maks. sIRom) Dimenzije: ?141 mm × 99.9 mm mm Masa: 800g Dostupna opcija: NOSAČ KAMERE DS-1280ZJ-DM21, DS-1275ZJ Podržava aplikacije mobilnih telefona Android, Windows I iPhone U kompletu dolaze korisnički programi iVMS,NVR Server I StreamServer Uređaj radi na Windows I MAC OS X operativnim sustavima
IR svijetlo. Ovisno od kamere do kamere može biti od 20 do 120 metara ili više metara (EXIR tehnologija)
LED
LED svijetlo je vidljivo svijetlo koje koriste kamere s nocnim radom u boji. Ovisno od kamere do kamere može biti od 20 ili više metara
IP66, IP67
zaštita od vlage i vode. Oznaka da je kamera 100% otporna
IK10
zaštita od udaraca – antivandal kamera
HCL
je značajka koja je nastala zbog prekomjerne ekspozicije od jakih izvora svjetlosti poput svjetala ili reflektora. HLC je vrlo korisno u sprečavanju zasljepljivanja sigurnosnih kamera noću. Čitljivost registarske pločice na parkiralištu na ulaznim točkama.
Frame rate fp/s
broj snimljenih slika u sekundi
Auto Iris
Mehanička funkcija objektiva, koja automatski regulira protok svjetla na senzor kamere.
AWB
Auto Whitte balans je elektronski proces u video kamerama a koristi se da se dobiju realne boje na temelju bijele boje. Proces se odvija na bazi bijelog objekta u slici.
IP kamere
To su Internet protokol kamere namjenjene za rad putem LAN mreze ili UTP kabla.
TURBO HD ili HDTVI, HDCVI, AHD
Nudi video snimak visoke kvalitete putem koaksialnog kabela, idealan za stara ozičenja.
BLC
kompenzacija pozadinskog osvjetljenja
PoE
Power Over Ethernet – napajanje kamera putem UTP kabela, napajanje direktno iz PoE snimaca ili PoE switch-a.
Auto Iris
Mehanička funkcija objektiva, koja automatski regulira protok svjetla na senzor kamere.
CCTV
Close Circuit TV ( Slobodan prijevod Interna TV ) U Hrvatskoj koristimo naziv Video nadzor.
H.264
H.264 je standard za video kompresiju te je ekvivalent za MPEG-4 Part 10, ili MPEG-4 AVC (za Advanced Video Coding ).
Lux
Jedinica mjere za nivo svjetla definirana kada svjetlosni tok od 1 lumena padne na područje od 1 m2.
Min. Illumination
Minimalno osvjetljenje (osjetljivost kamere ) potrebno za rad kamere Osjetljivost kamere povezana je sa F-STOP objektiva , refleksije sa objekta i topline boje. Što je veći F-STOP to je potrebno više svjetla i obratno. Napr: za istu kameru ako je 1Lux / F2,0 onda je 0,5 Lux / F1,4.
Progressive scan
Progresivno skeniranje - način izrade slike tako da se skeniraju sve linije po redu. Bolja slika.
Real Time
Prikaz slike u stvarnom vremenu daje se obično kod DVR-ova, Multiplexera itd.
Resolution
Broj Horizontalnih TV linija za analogne uređaje ili broj točaka (pixela ) za digitalne uređaje.
Rezolucija snimanja
Određuje koliko maksimalno kvalitetno uređaj za snimanje može snimati neki video signal. Rezolucija prikazivanja slike odnosi se na cijeli ekran bez obzira na broj video ulaza ( kamera ). Rezolucija snimljenog materijala ovisi u kojoj je rezoluciji snimam svaki kanal.
Objektiv
Optička komponenta koja se sastoji od jednog ili više elementa optičkog stakla - specijalno brušenih leća.
PinHole Lens
Optika fiksnog irisa koja koristi vrlo malen otvor za diskretan nadzor prostora
